ACCESSORIES
Maximize the functionality of your space with a selection of versatile accessories
finished end panels
All cabinets require finished end panels on exposed cabinet ends due to the nature of visible fasteners on the cabinet sides. Utility spaces such as beside a stove, dishwasher or fridge may find the use of white adhesive screw caps to be acceptable in the place of finished end panels.
White Rio TFL panels available IN STOCK in the following sizes:
TFL P - Pantry End Panel - 25”W, 96”H, 3/4”T
TFL B - Base End Panel - 25”W, 36”H, 3/4”T
TFL V - Vanity End Panel - 23”W, 32”H, 3/4”T
TFL T13 - Top End Panel 13 - 13.5”W, 13”H, 3/4”T
TFL T22 - Top End Panel 22 - 13.5”W, 22”H, 3/4”T
TFL T30 - Top End Panel 30 - 13.5”W, 30”H, 3/4”T
TFL T39 - Top End Panel 39 - 13.5”W, 39”H, 3/4”T
TFL T13ED - Top End Panel 13ED - 25”W, 13”H, 3/4”T
TFL T19ED - Top End Panel 19ED - 25”W, 19.25”H, 3/4”T
TFL T22ED - Top End Panel 22ED - 25”W, 22”H, 3/4”T
TFL FILL - Fill / Kick / Riser Material - 6”W, 96”H, 3/4”T
TFL TRIM - Panel Splice/ Riser Trim Material - 3/4”W, 96”H, 1/4”T
OR CUSTOM
crown MOULDING

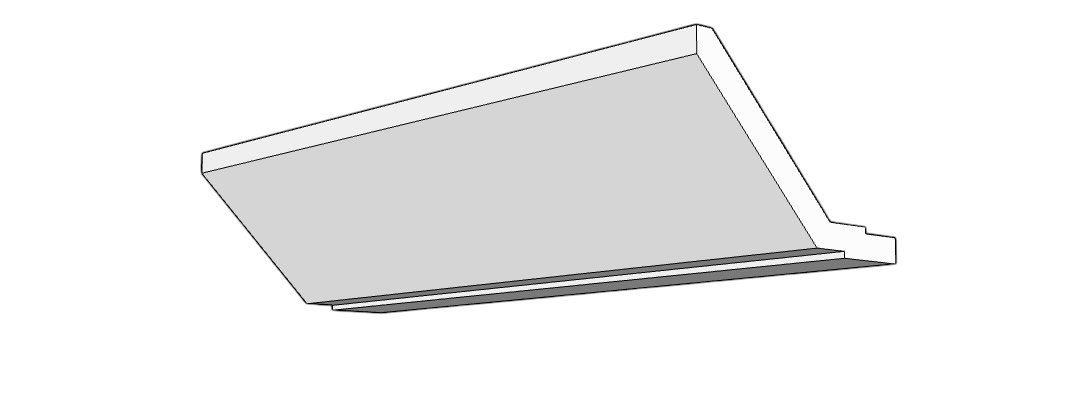

regular shaker crown
‘White Rio’ Finish IN STOCK
To be mounted directly to the top of the upper cabinets.
Requires minimum 3.5” height clearance.
DOOR MATCHING FINISHES AVAILABLE TO ORDER.
in stock ‘White Rio’ TFL Crown AND RISER OptionS

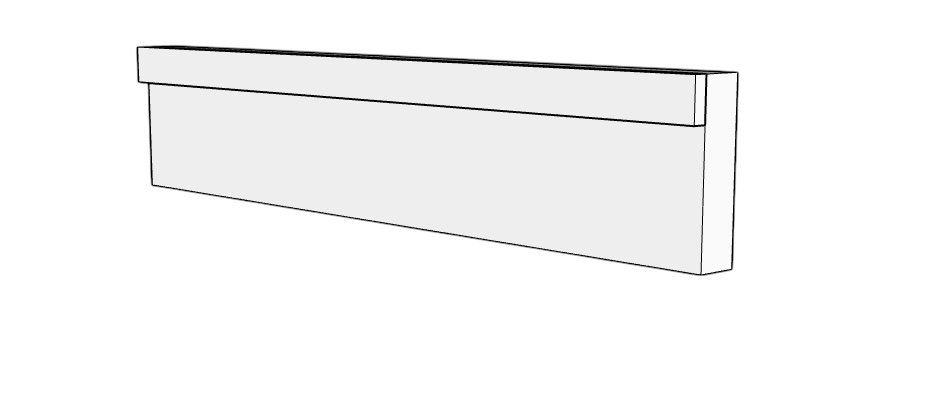

RISER AND TRIM
‘White Rio’ Finish IN STOCK
To be mounted directly to the top of the upper cabinets.
TFL FILL Riser with TFL TRIM to ceiling.
Requires minimum 1” height clearance.
DOOR MATCHING FINISHES AVAILABLE TO ORDER.
special order Crown

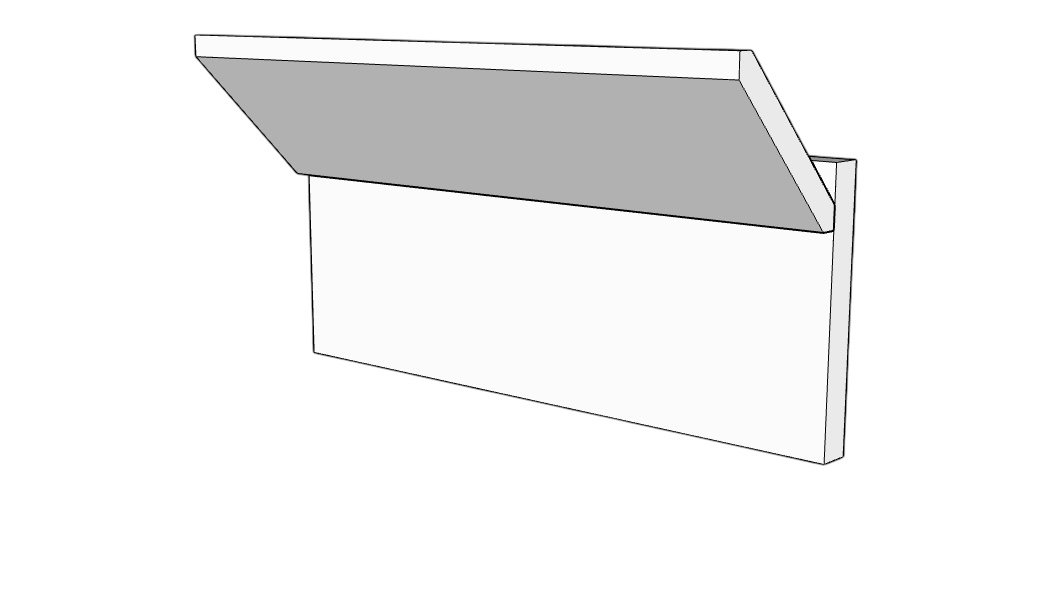

SOFFIT shaker crown WITH RISER
Riser to be mounted directly to the top of the upper cabinets. Soffit Shaker Crown to be mounted to riser.
Requires minimum 4” height clearance.
AVAILABLE TO ORDER IN ALL STANDARD FINISHES.
interior accessories
IN STOCK accessories
recycle bin DRAWER
For use in B15, B18 or BD15, BD18 Units
Includes drawer box parts, gallery rails and two plastic garbage bins. Finished Bin Face sold separately.
Cutlery Tray
For use in BD15 or BD18 Units. Larger Units will require TFL drawer divider.
Plastic molded trays to be cut to size.
BD15
Min-Max Width: 11 11/16” - 13 3/4”
Min-Max Length: 17 3/8” - 21 1/2”
BD18
Min-Max Width: 13 11/16” - 15 3/4”
Min-Max Length: 17 3/8” - 21 1/2”
organizer PULLOUT
For use in B12 Units
TFL construction with two adjustable shelves. Includes premium soft-close undermount slides.
Finished Face sold separately.
utensil organizer PULLOUT
For use in B12 Units
TFL construction with one adjustable shelf and one adjustable utensil shelf. Includes three stainless steel utensil cups. Includes premium soft-close undermount slides.
Finished Face sold separately.
lazy susan
For use in BK3333 and BK3636 Units
Plastic Kidney Bean Shaped Trays on Steel Central Pole.
ROLL-out shelf kit
For use in any Base or Pantry Top Units
Overall depth of pull out shelf 20 5/16”.
Includes Roll-Out shelf box parts and TFL internal face.
Spacer Pilasters are required for use in hinged cabinets. Sold separately.
wire tray divider
For use in any unit.
Two sizes available:
TRAY DIVIDER: 18 7/8W, 12H
TALL TRAY DIVIDER: 18 7/8W, 18H
special order accessories
super susan
For use in BK3333 and BK3636 Units
Wood Kidney Bean Shaped Trays mounted to cabinet bottom and fixed center shelf. Sold Fully assembled.
lemans ii blind corner
For use in BC39L or BC39R
17 7/8”W door required.
DOOR MOUNTED GARBAGE CAN
For use in Base Cabinets or Vanity Cabinets
Minimum 14 7/8” Door required.
